by Sunlightsquare

Dec 15, 2023

There aren’t too many synthesizers whose sound can claim to be in space, but the MiniMoog is a rare exception. A recording featuring the distinctive tones of the MiniMoog earned its place on NASA’s Voyager 1 and Voyager 2 spacecraft’s Golden Record. Launched in 1977 to explore the outer reaches of our solar system, these spacecraft carry a musical ambassadorship from Earth into the vastness of the cosmos.



Mini-Moog-08-2000-W-1024x575
Mini-Moog-05-2000-W-1024x575
Mini-Moog-02-2000-W-1024x575
minimoog clau x
Mini-Moog-04-2000-W-1024x575
Mini-Moog-07-2000-W-1024x575
Mini-Moog-15-2000-W-1024x575
Mini-Moog-13-2000-W-1024x575
Mini-Moog-17-2000-W-1024x575
previous arrow
next arrow
Mini-Moog-08-2000-W-1024x575
Mini-Moog-05-2000-W-1024x575
Mini-Moog-02-2000-W-1024x575
minimoog clau x
Mini-Moog-04-2000-W-1024x575
Mini-Moog-07-2000-W-1024x575
Mini-Moog-15-2000-W-1024x575
Mini-Moog-13-2000-W-1024x575
Mini-Moog-17-2000-W-1024x575
previous arrow
next arrow

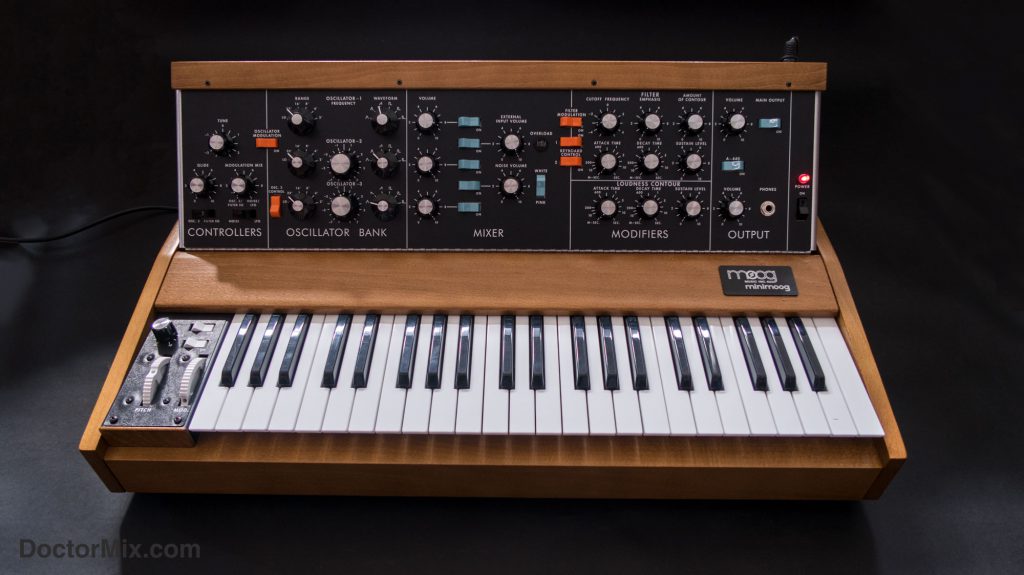

The MiniMoog is a monophonic analog synthesizer introduced by Moog Music in 1970. It quickly gained popularity among musicians for its rich and warm sound, as well for its versatility & portability.

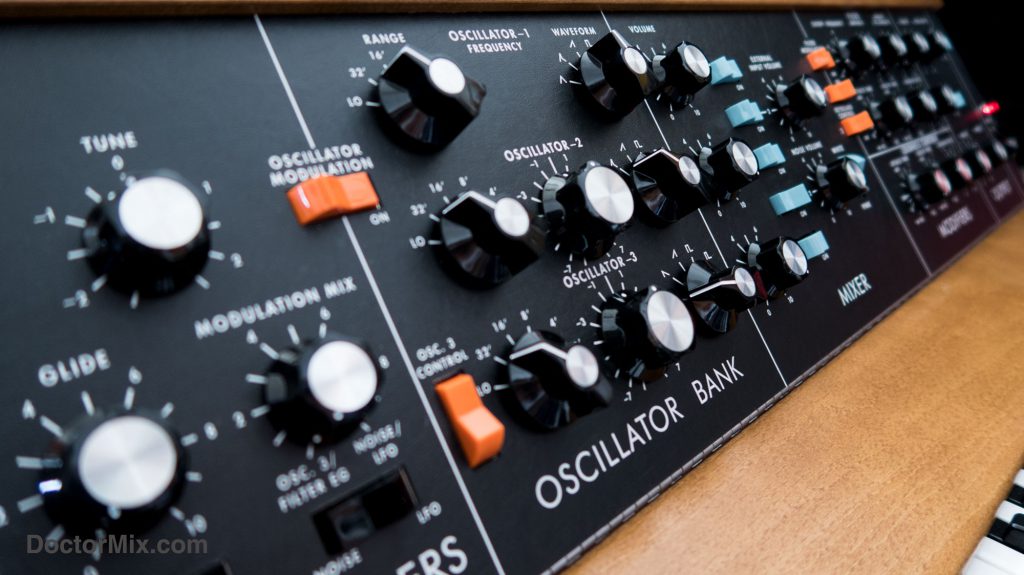

It boasts three Voltage-Controlled Oscillators (VCOs) capable of generating sawtooth, square, and triangle waveforms. The MiniMoog’s 24 dB/octave low-pass filter imparts a characteristic warmth, modifiable through the envelope generator for diverse sound sculpting. To further colour the sound it also features a noise generator. The MiniMoog’s compact design, powerful VCOs, distinctive filter, and creative modulation options have solidified its status as an iconic and versatile analog synthesizer.



Notable Uses:

  • Emerson, Lake & Palmer: Lucky Man (1970)
  • Stevie Wonder: Superstition (1972)
  • Pink Floyd: Money (1973)
  • Herbie Hancock: Chameleon (1973)
  • Kraftwerk: Autobahn (1974)
  • Gary Numan: Cars (1979)
  • Prince: Controversy (1981)
  • Michael Jackson: Thriller (1982)
  • Jan Hammer: Crockett’s Theme (1987)
  • Depeche Mode: Enjoy the Silence (1990)
  • Nine Inch Nails: Closer (1994)
  • Daft Punk: Around the World (1997)
  • Pharrell Williams: Happy (2013)


Technical Specifications:

  • Polyphony: Monophonic
  • Oscillators: 3 Voltage-Controlled Oscillators (VCOs)
  • Oscillator Waveforms: Sawtooth, Square, Triangle
  • Filter: 24 dB/Octave Low-Pass Filter
  • Envelopes: 1 ADSR (Attack, Decay, Sustain, Release) Envelope Generator
  • Modulation Generators: 1 Modulation Generator
  • LFO (Low-Frequency Oscillator): 1 LFO for Modulation
  • Keyboard: 44-note Keyboard
  • Portamento: Yes, with control
  • Pitch Bend: Yes
  • Modulation Wheel: Yes
  • External Audio Input: Yes
  • Output: Mono Audio Output
  • Additional Features: Noise Generator, Contour Amount Control
  • Dimensions: 914mm (W) x 356mm (D) x 177mm (H) (36″ x 14″ x 7″)
  • Weight: ~20 kg (44 lbs)
